CKZ-B單向超越離合器特性及應用：
CKZ-B系列為楔塊式單向離合器，內含兩套滾珠軸承支撐。依照不同需要，出廠時內含潤滑油或潤滑脂。 內環與軸用鍵聯結，外環為h7公差與機壁H7公差配合，并用螺孔聯結。
常用在包裝、運輸、冶金、礦山等機械上。防止逆轉或用于低速楔合、中低速超越的雙動力系統。
型號 | 額定扭矩 | 超越極-限轉速 | 外形尺寸〔mm〕 | 重量 | |||||||||||
外環尺寸 | 內環尺寸 | ||||||||||||||
內環 | 外環 | D〔h7〕 | D1〔H7〕 | B | F | n-M | E | H | d〔H7〕 | C | bn×tn | e | |||

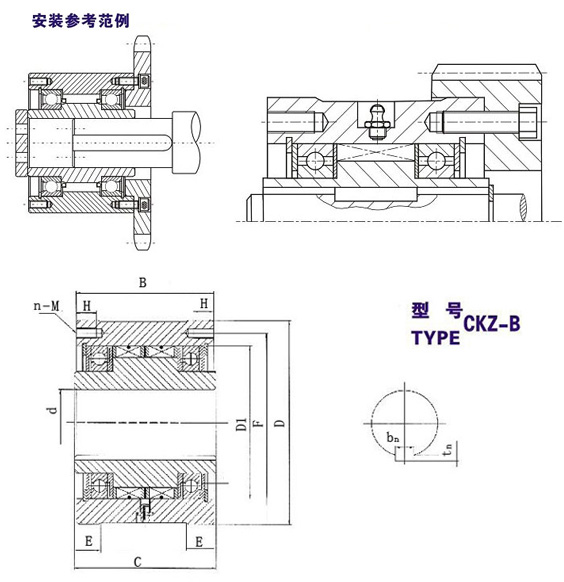

CKZ-B 25110 | 404 | 700 | 300 | 110 | 80 | 68 | 95 | 6-M8 | 15 | 20 | 25 | 70 | 10×3.3 | 4.5 | 3.98 |
CKZ-B35130 | 825 | 560 | 250 | 130 | 90 | 85 | 100 | 6-M10 | 15 | 25 | 35 | 87 | 10×3.3 | 4.5 | 7.01 |
CKZ-B45150 | 1464 | 490 | 200 | 150 | 110 | 90 | 130 | 6-M10 | 20 | 25 | 45 | 92 | 14×3.8 | 4.5 | 9.69 |
CKZ-B50165 | 1830 | 420 | 150 | 165 | 120 | 92 | 145 | 6-M12 | 20 | 25 | 50 | 97 | 14×3.8 | 5 | 12.36 |
CKZ-B50180 | 2990 | 420 | 150 | 180 | 125 | 106 | 160 | 6-M12 | 20 | 25 | 50 | 108 | 16×3.8 | 5 | 16.51 |
CKZ-B60200 | 3494 | 350 | 120 | 200 | 150 | 115 | 180 | 6-M12 | 25 | 25 | 60 | 117 | 20×4.9 | 6 | 22.02 |
CKZ-B70240 | 4920 | 350 | 120 | 240 | 170 | 122 | 210 | 6-M14 | 25 | 30 | 70 | 124 | 22×5.4 | 6 | 34.65 |
CKZ-B75260 | 5760 | 280 | 100 | 260 | 200 | 130 | 230 | 6-M18 | 25 | 35 | 75 | 138 | 22×5.4 | 8 | 42.38 |
CKZ-B80300 | 7500 | 280 | 100 | 300 | 230 | 136 | 265 | 6-M18 | 25 | 35 | 80 | 138 | 22×5.4 | 8 | 57.17 |
CKZ-B25100 | 400 | 750 | 350 | 100 | 75 | 80 | 88 | 6-M18 | 10 | 16 | 25 | 82 | 8×3.3 | 4.5 | 2.62 |
CKZ-B28105 | 400 | 700 | 300 | 105 | 80 | 68 | 95 | 6-M8 | 15 | 16 | 28 | 70 | 10×3.3 | 4.5 | 2.75 |
CKZ-B3090 | 350 | 800 | 380 | 90 | 62 | 49 | 75 | 6-M6 | 10 | 15 | 30 | 50 | 8×2.0 | 4 | 4.86 |
CKZ-B3290 | 380 | 800 | 380 | 90 | 65 | 60 | 80 | 8-M6 | 10 | 16 | 32 | 60 | 10×3.7 | 4 | 4.32 |
CKZ-B30110 | 404 | 700 | 300 | 110 | 80 | 68 | 95 | 6-M8 | 15 | 16 | 30 | 70 | 10×3.3 | 4.5 | 3.91 |
CKZ-B32125 | 1021 | 560 | 250 | 125 | 95 | 90 | 110 | 8-M8 | 15 | 12 | 32 | 92 | 10×3.3 | 4.5 | 6.53 |
CKZ-B35115 | 800 | 700 | 300 | 115 | 72 | 78 | 95 | 6-11 | 15 | 35 | 78 | 10×3.3 | 4.5 | 4.63 | |
CKZ-B40125 | 800 | 600 | 300 | 125 | 95 | 76 | 110 | 6-M8 | 15 | 18 | 40 | 80 | 12×3.3 | 4.5 | 5.60 |
CKZ-B45190 | 2150 | 380 | 130 | 190 | 130 | 86 | 160 | 4-4 | 20 | 45 | 86 | 14×3.8 | 6 | 17.5 | |
CKZ-B55155 | 1735 | 490 | 200 | 155 | 125 | 100 | 140 | 8-M8 | 20 | 20 | 55 | 102 | 16×4.3 | 5 | 10.96 |
CKZ-B55175 | 1800 | 420 | 150 | 175 | 110 | 79 | 155 | 6-M10 | 20 | 15 | 55 | 87 | 16×4.3 | 5 | 14.92 |
CKZ-B60180 | 3100 | 420 | 150 | 180 | 140 | 124 | 158 | 8-M10 | 25 | 20 | 60 | 128 | 18×4.4 | 6 | 17.25 |
CKZ-B65180 | 3100 | 420 | 150 | 180 | 140 | 122 | 158 | 8-M10 | 25 | 20 | 65 | 124 | 18×4.4 | 6 | 16.68 |
CKZ-B80160 | 1830 | 420 | 150 | -160 | 130 | 100 | 145 | 6-M8 | 25 | 20 | 80 | 112 | 22×5.4 | 6 | 11.42 |
